Total Lunar Eclipse, Super Blood Moon, Rocky Mountain National Park, Colorado, September 27, 2015
Here in North America, Sunday night and early Monday, January 20-21, you have your last chance to photograph the last total lunar eclipse until 2021. This article will show you how.
What is a Super Blood Wolf Moon Eclipse?
The full moon in January is the Wolf Moon, whether or not there is an eclipse of the moon.
Super moon is a new, non scientific term to refer to a full moon when the moon is closest to the earth (perigee) and is somewhat large in size and somewhat brighter. To the naked eye (for most untrained observers) a super moon doesn’t look any different than any other kind of full moon. Super moons are not rare.
Blood moon refers to the yellow-orange-copper color of the moon during eclipse totality. This happens with almost all lunar eclipses unless there are unusual atmospheric circumstances. The intensity of the color varies with each eclipse, due to the amount of moisture and dust particles in the air.
The terms super moon and blood moon are mostly used as a modern form of hype to promote eclipse watching.
Some people flood the internet with weird super moon, blood moon, and blue moon memes with no basis in scientific fact and sometime outright nonsense (“once in a lifetime”, “first time in 300 years”, “this super blood moon will activate the psychic powers of your liver”). And finally, super moon and blood moon are used by some people to promote religious prophecies, usually of impending doom.
Where Can You See the Eclipse?

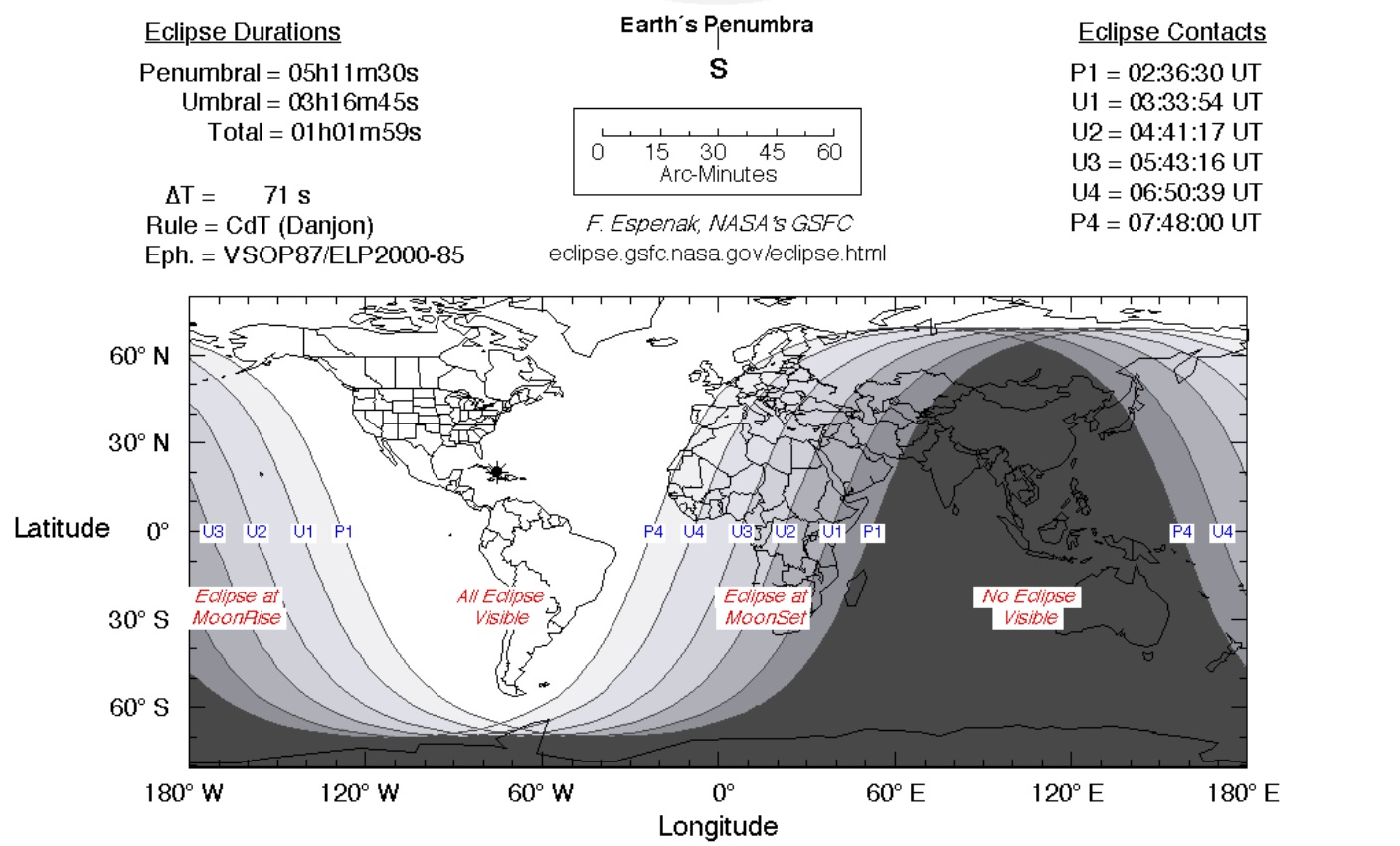

Eclipse visibility map and eclipse times.
You will be able to see the entire eclipse from anywhere in North America.
When is the Eclipse?
In any umbral lunar eclipse, the moon always passes through Earth’s very light penumbral shadow before and after its journey through the dark umbral shadow. From Earth and Sky.
Unlike a solar eclipse where the moon’s shadow races across the continent and the eclipse happens at different times, the earth gradually blocks sunlight on the moon’s surface at the same time everywhere as the moon passes into the penumbra and then into the umbra and totality. Here are the times for the phases of the eclipse for North American time zones as provided by Earth and Sky.
Atlantic Time
Partial umbral eclipse begins: 11:34 p.m. (January 20, 2019)
Total lunar eclipse begins: 12:41 a.m. (January 21, 2019)
Greatest eclipse: 1:12 a.m. (January 21, 2019)
Total lunar eclipse ends: 1:43 a.m. (January 21, 2019)
Partial umbral eclipse ends: 2:51 a.m. (January 21, 2019)
Eastern Time
Partial umbral eclipse begins: 10:34 p.m. (January 20, 2019)
Total lunar eclipse begins: 11:41 p.m. (January 20, 2019)
Greatest eclipse: 12:12 a.m. (January 21, 2019)
Total lunar eclipse ends: 12:43 a.m. (January 21, 2019)
Partial umbral eclipse ends: 1:51 a.m. (January 21, 2019)
Central Time
Partial umbral eclipse begins: 9:34 p.m. (January 20, 2019)
Total lunar eclipse begins: 10:41 p.m. (January 20, 2019)
Greatest eclipse: 11:12 p.m. (January 20, 2019)
Total lunar eclipse ends: 11:43 p.m. (January 20, 2019)
Partial umbral eclipse ends: 12:51 a.m. (January 21, 2019)
Mountain Time
Partial umbral eclipse begins: 8:34 p.m. (January 20, 2019)
Total lunar eclipse begins: 9:41 p.m. (January 20, 2019)
Greatest eclipse: 10:12 p.m. (January 20, 2019)
Total lunar eclipse ends: 10:43 p.m. (January 20, 2019)
Partial umbral eclipse ends: 11:51 p.m. (January 20, 2019)
Pacific Time
Partial umbral eclipse begins: 7:34 p.m. (January 20, 2019)
Total lunar eclipse begins: 8:41 p.m. (January 20, 2019)
Greatest eclipse: 9:12 p.m. (January 20, 2019)
Total lunar eclipse ends: 9:43 p.m. (January 20, 2019)
Partial umbral eclipse ends: 10:51 p.m. (January 20, 2019)
Alaskan Time
Partial umbral eclipse begins: 6:34 p.m. (January 20, 2019)
Total lunar eclipse begins: 7:41 p.m. (January 20, 2019)
Greatest eclipse: 8:12 p.m. (January 20, 2019)
Total lunar eclipse ends: 8:43 p.m. (January 20, 2019)
Partial umbral eclipse ends: 9:51 p.m. (January 20, 2019)
Hawaiian Time
Moon partially eclipsed at moonrise: 6:07 p.m. (January 20, 2019)
Total lunar eclipse begins: 6:41 p.m. (January 20, 2019)
Greatest eclipse: 7:12 p.m. (January 20, 2019)
Total lunar eclipse ends: 7:43 p.m. (January 20, 2019)
Partial umbral eclipse ends: 8:51 p.m. (January 20, 2019)
Photography Equipment
You will need a camera with a long lens. The longer the focal length of your lens, the bigger the moon will be. If you have a lens that is 200-400mm in focal length or longer you will get a relatively nice sized moon. The effective 35mm focal length of the image above was 456mm (285mm focal length on a camera with a 1.6X field of view crop). Much shorter than 200mm and the moon will look disappointingly small compared to the nice eclipse photos you see online and in magazines.
A sturdy tripod and tripod head are essential. At totality you will need exposures time around 1 to 2 seconds so you can’t reliably hand hold your camera.
If you don’t have a long lens, you can still take eclipse photos by making them more about the night that just happens to have a small, yellow-orange moon in the photo.
Techniques
Techniques for all lunar eclipses are pretty much the same, super moon or not.
If your camera isn’t already set up this way, set your camera to capture RAW plus JPEG files at the highest resolution, set the color space to Adobe RGB (1998), and set the white balance to daylight. All of this will give you better image quality when it comes time to do the post processing.
Critical focus can be hard to achieve and you can’t put your ultimate trust in autofocus. The best way to focus is to use your camera’s “live view” mode. Before the eclipse starts, begin with your camera in normal viewing mode (through the viewfinder) and autofocus on the moon. Then turn autofocus off. Turn on live view mode, center the moon in the viewfinder, and magnify the image to 10x on the LCD and manually focus the lens. Take a test shot and magnify the image to make sure everything looks sharp. For more information, read How To Get Critical Focus in Live View Mode with a Magnified Image.
Lens taped at infinity.
If everything looks sharp it is a good idea to tape the focusing ring in place so it doesn’t move. Don’t use duct tape! Gaffer’s tape is best and painter’s tape would be the second choice.
In “live view” mode the mirror of a DSLR is is locked up. That is a good thing – you won’t get image degradation due to mirror slap. So it is best to leave the camera in live view mode. If your camera doesn’t have a reflex mirror you don’t need to worry about this.
You don’t want to jiggle the camera by pushing the shutter button, so turn on the two second self timer so there is time for vibrations to die down after you push the shutter button. It would be even better to use an electronic cable release.
Incidentally, live view mode will drain the battery faster than normal viewing mode, especially in cold weather, so make sure you charge your battery and backup battery the night before the eclipse.
Exposure
This article assumes you understand exposure basics and the interactions of aperture settings, shutter speeds and ISO settings. If not, read the exposure series which begins here.
Don’t trust auto exposure. Set you camera to manual metering mode and use the following guidelines.
Before the eclipse begins, set your aperture to f/8, your shutter to 1/100 second shutter, and the ISO to 100 and take a picture. Feel free to bracket by using shutter speeds of 1/200 and 1/50.
As the eclipse progresses and the moon gets darker, you will need to gradually increase the ISO and the shutter speed. While your LCD images are not a totally accurate guide to exposure, keep an eye on the images to make sure your moon isn’t totally washed out or really, really dark. Bracket your exposures from a little too light to a little too dark.
It is impossible to predict how dark each lunar eclipse will be at totality so I can’t tell you in advance what the exact correct exposure will be. Generally you will end up around 1 or 2 seconds with an ISO of 1600, but be flexible. For the 2015 eclipse above I ended up with 1 and 2 second shutter speeds at ISO 1600.
During a two second exposure stars will trail a bit during the exposure, along with some potential blurring of the moon. You can minimize blurring of the moon with an astronomical clock drive set to the motion of the moon (not the motion of the stars). The good news is you can get a surprisingly good image of the moon in a 1 or 2 second exposure without a clock drive as long as you aren’t using a super long lens (500mm and up). The photo at the top was taken at 2 seconds without a clock drive.
Do not use a shutter speed longer than 2 seconds with lenses as long as 300-400mm. Do not use a shutter speed longer than 1 second with lenses 500mm or longer. If the moon is too dark, go to a higher ISO.
Post Processing
ISO 1600 means a fair amount of noise. Some judicious post processing with Adobe Camera Raw will help reduce the noise to have a sharp clean image. You may need to adjust the exposure, clarity, and vibrance sliders in the basic panel to get the optimum image.
If you don’t get a chance to photograph this lunar eclipse, you can always use these techniques on the next one. Earth and Sky, Time and Date, and Space.com will let you know when the next lunar eclipse is going to occur.
Photo Data: Canon 7D Mark II. Canon EF 70-300 f/45.-5.6 DO IS USM lens at 285mm. 2 sec, f/8, ISO 1600.
Article Links
How To Get Critical Focus in Live View Mode with a Magnified Image
How To Focus Your Lens at Infinity for Night Photography
Why Is Exposure So Important? – the Exposure Series
The Total Lunar Eclipse of January 20-21 – Earth and Sky
January 20-21, 2019 Total Lunar Eclipse (Blood Moon) – Time and Date
Super Blood Moon Lunar Eclipse of January 2019: Complete Guide – Space.com
Super Blood Wolf Moon: How to Watch the 2019 Total Eclipse Online – Space.com
How to watch a total eclipse of the moon – Earth and Sky
NASA Lunar Eclipses Web Site – 2011-2020
NASA Lunar Eclipses Web Site – 2021-2030
What is a Blood Moon? – Earth and Sky
Book Links
If you want to know more about photographic exposure, making the most of your camera gear, night sky photography, landscapes photography, wildlife photography and a whole lot more, read Digital Photography Exposure for Dummies, one of the highest rated photography books at Amazon.com. Learn more about the book here and order it here.
The Best Night, Astronomy, and Astrophotography Books
Milky Way from Horseshoe Park, Rocky Mountain National Park, Colorado. September 27, 2015. 8:06:12 PM MDT. Canon 5D Mark III. Canon EF 15mm f/2.8 lens. 30 sec, f/2.8, ISO 3200.
